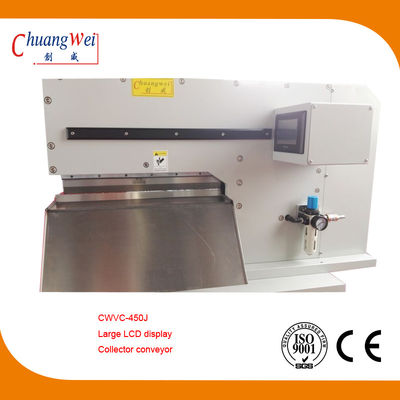

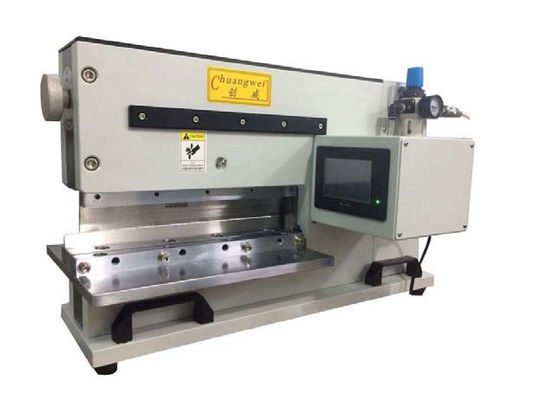

Large LCD Display V-Groove Cutting Machine For PCB And Aluminium Substrate CWVC-450J
1.Easy maintenance and operation
2.Thin PCB even to 0.3mm can be depaneled safely
3.Depaneling process without vibrations due to pneumatic drive unit
Feature:
● Separates boards up to 3.5mm thick
● Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors
● Operator foolproof! Panels cannot be inserted into the knives except on the score line
● Pneumatically driven
● Handles high components up to70mm
● Bow waves that can occur with round knives are avoided
● Easy adjusting of distance between knives
● Independent lab tests show less than 200 microstrains of stress measuring compression and tension.
● Has capacity counter function
Specification
| The Longest Minimize: | 450mm |
| Size: | 960×425×350mm |
| Machine Weight: | 200KG |
| components height(max) | 70mm |
| thickness max | 3.5mm |
| type | Pneumatically drive |
Sales service:
Production flow:
About us:
Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China.
The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers.
Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now ChuangWei have became one of the biggest PCB separator production base in China.
Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
